ISO Dry container spare parts

Conatiner Hinge, Forging Hinge, Container Door Parts, Trailer Spare Parts

1.6mm Corten Steel Corrugated Shipping Container Side Panel

We are one of the professional Container Plywood Flooring Factory from China. We began to produce the Container Plywood Flooring since 2010, 9 years until now, we

have been worked with numerous of customers around world, you must ever know some of them, example CIMC, MSC, MATEC,MECRC, etc.

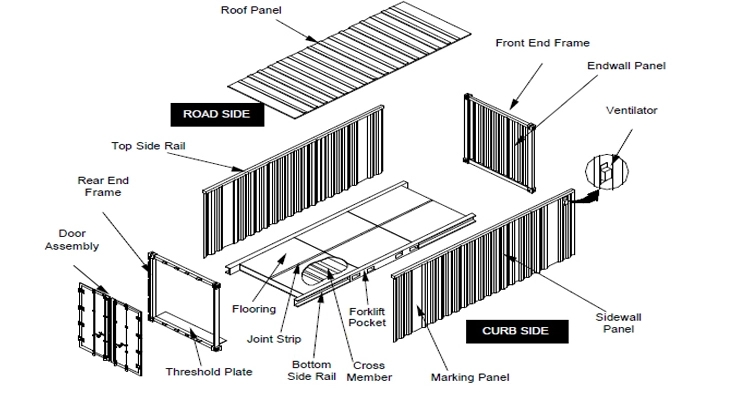

We also have all the dry container spare parts from our join venture factory. The corten steel side panel, Top panel, Corner casting, Crossmember, Rear corner

post,Floor screw, Door gasket, etc. and The lashing equipment like Twist lock, D-ring, Container bridge fitting, Flush ISO foundation as well as some reefer containers

parts. We had been export to USA, EURO, ASIA, AFRICA, OCEAN country like Singapore, Malaysia, Philippine, Pakistan, Las Vegas, Canada, Durban, Australia, Germany,

Holland, Welcome more customer around world to join us, we will keep our best service and price to you always. We will reply your inquiry within one hours.

Why choose us:
1. More than 10 years experience in this industry
2. Professional foreign trade team
3.OEM & ODM capacity
4. High quality assured & competitive price
5. Try our best to meet your need & save your budget
6. Very popular in Southeast Asia, Africa, Mid-East and South America etc.

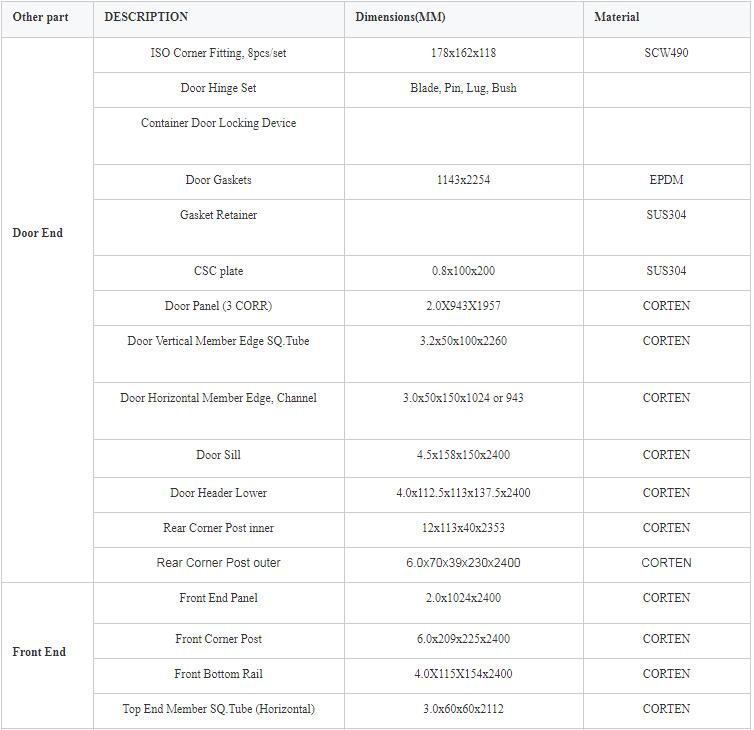

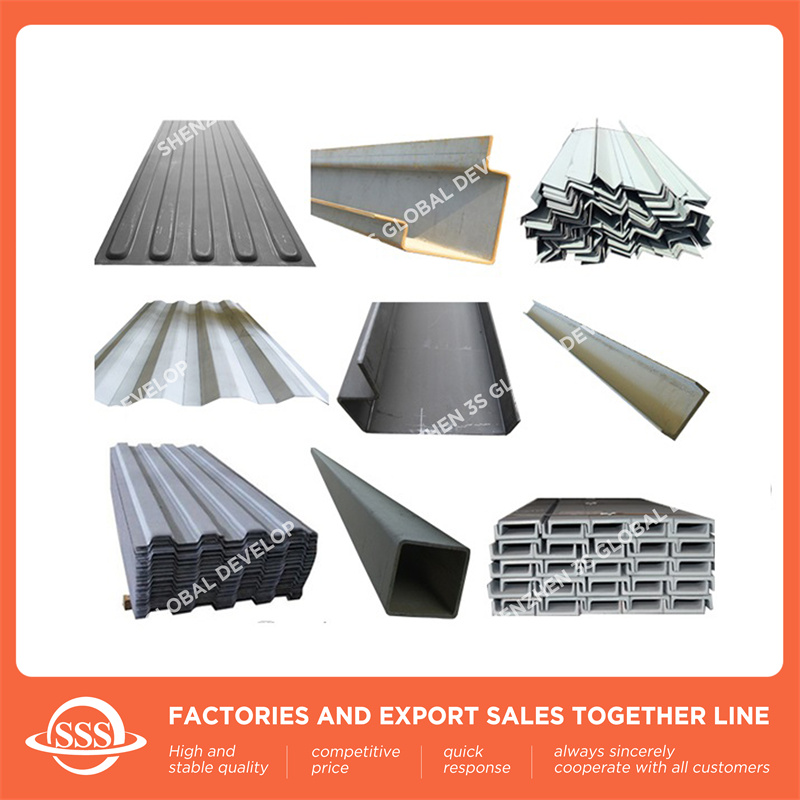

We have all the dry container spare parts for sell
Side panels/wall panel/roof panel/top panel/frone end panls..

Front corner post/Rear corner post inner/outer/corten cross member/bottom side rail/top side rail/door sill/c-chanel/v-chanel...
Corner casting/Corten Angle/Door sail/Front bottom rail/Top end rail...
All the locking parts for container doors.

Shipping Container Side Panel
We could supply all kinds of shipping container panels, incuding roof panel, side panel, door panel, front panel. All of them are SPA-H Corten A steel.
Usually each20ft container side consists of 5 pcs of container side wall panel, 40ft container need 11 pcs.For the thickness of side wall panel, we could supply

1.6/2.0mm for choosing.
Side panel size:2400x1160x1.6/2.0mm
Top panel size:2.0 x 1045 x 2356mm
Corrugation: 2C, 3C, 4C, 5C.
Surface: Shop Primer
Packing: Export pallets

50 pcs are packed into one pallet, 10 pallets into one 20ft container.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping. One-Stop Purchasing is our advantage.

Galvanized Container Door Locking System Door Locking Device for Container
Container Door Locking System:
3S supply a full range of container door lock parts, which is high quality and specialized in container building, please check detailed parts as follows:

Container Cam Keeper with Casting for Sale:
1.3S  provide full range of ISO container parts with good quality and reasonable price.
2.3S  have exported ISO dry container parts to Over 55 Countries.
3.3S  are the No. 1 Seller of container parts.

Container Door Sill Specifications:

Iso shipping container door:
Name: Hot-sell OEM shipping container door
Material: Steel
Type: Container door
Package: Export pallet or plywood box
Open style: Swing
We supply full range of Container Parts with good quality and reasonable price.
We are the No. 1 Seller of container parts.

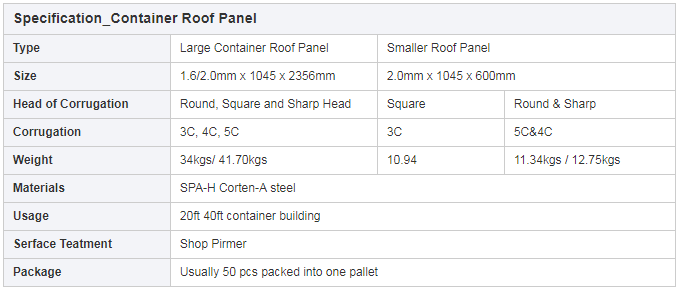

Crten Steel Parts 2.0mm Shipping Container Roof Panel SA2.5 Shot Blasting Rust Removal

Container roof panel is designed for shipping container using, which is made of Corten Steel Plate. It's also one kind of corrugation panel, which is produced by Die-stamped and stronger than other steel flat panel.

The surface is with Zinc Shop Price, which is perfectly protect corrosion from rust. Shipping container roof panel size is 1.6/2.0x1045x2356mm, 3C,4C, 5C. We also supply shipping container roof panel with high quality and many type of corrugation, please feel free to inquiry for drawing details.

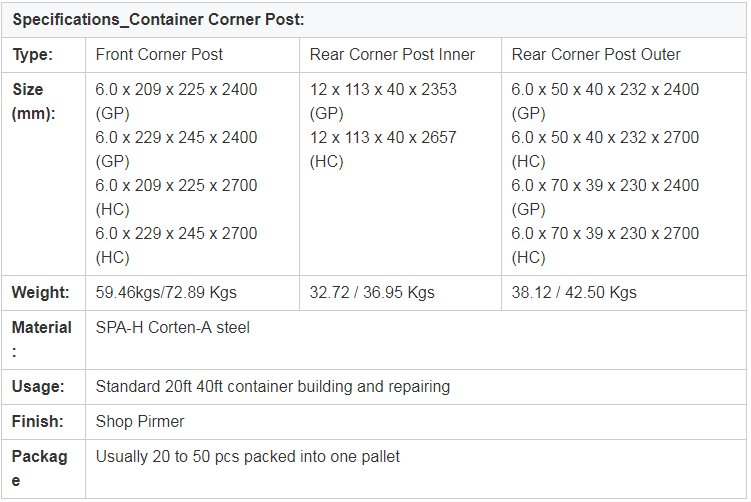

Corten Steel ISO Container Front Corner Post
Container Corner Post
We could supply container rear corner post with high quality, including Front, Rear Inner and Rear Outer corner post. Also supply order size as per your requirement.

Please check the details following:
1. Size: Please check the chart as follows.
2. Material: SPA-H Corten-A steel
3. Weight: Please check the chart respectively as follows.
4. Type of Corner: GP/HC Container
5. Usage: Container building
6. Surface Treatment: Shop primer

Container Front Panel:
Material: Corten-SPH-A
WT: 46-52kgs
Size(mm): 2.0X1024X2400 (GP) / 2.0X1024X2700 (HC)
Corrugation: 4 Corr.

Container Roof Panel:
Material: SPA-H (Corten-A)
WT: 10.12kgs / 40.12kgs
Size(mm): 2.0X1045X2356/ 2.0x1045x600
Corrugation: 5 Corr.

Container Side Panel:
Material: Corten-A
WT: 35kgs - 51kgs
Size (mm) : 1.6X1116X2400 (GP) / 2.0x1116x2400(HC)
                 1.6X1116X2700 (GP) / 2.0x1116x2700 (HC)
Corrugation: Standard Corr.

Container Door Panel:
Material: Corten-A
WT: 35kgs - 51kgs
Size (mm) : 2.0 x 943 x 1957 / 2.0 x 943 x 2262
Corrugation: 2 or 3 Corr.

Container Front Corner Post:
Material: Corten-A
WT: 59.46 / 72.89 kgs
Size(mm): 6.0 x 209 x 225 x 2400 / 6.0 x 209 x 225 x 2700
                 6.0 x 229 x 245 x 2400 / 6.0 x 229 x 245 x 2700
Finish: Shop Primer

Container Rear Corner Post:
Type: Corner Post Inner Corner Post outer
WT: 32.72 / 36.95 kgs 38.12 / 42.50 kgs
Size(mm): 12 x 113 x 40 x 2353
                12 x 113 x 40 x 2657
                6.0 x 50 x 40 x 232 x 2400
                6.0 x 50 x 40 x 232 x 2700
                6.0 x 70 x 39 x 230 x 2400
                6.0 x 70 x 39 x 230 x 2700
Material: Corten-A
Finish: Shop Primer

Container Corss Member:
Type: Corss member (1) Corss member (2)
WT:  14.16 kgs              16.68 kgs
Size (mm): 4.0/4.5 x 45 x 122 x 45 x 2350
                  4.0/4.5 x 45 x 122 x 80 x 2350
Material: Corten-A
Finish: Shop Primer

Container Bottom Rail:
Type: Container Door Sill Front Bottom Rail
WT: 14.16 kgs 16.68 kgs
Size (mm): T4.5 x 158 x 150 x2400 T4.5 x 115 x 154 x 2400
Material: Corten-A
Finish: Shop Primer

Container Side Rail:
Type: Container Bottom Side Rail & Container Top Side Rail( Square Tube)
WT:   44.72 / 50.31 kgs
       32.48 / 67.44kgs
Size(mm): T4.5 x 50 x 162 x 30 x5702
       T4.5 x 48 x 162 x 30 x5702
       T4.5 x 50 x 155 x 30 x5702
       T3.0 x 60 x 60 x 5702
       T3.0 x 60 x 60 x 11841
Material: Corten-Aa
Finish: Shop Primer

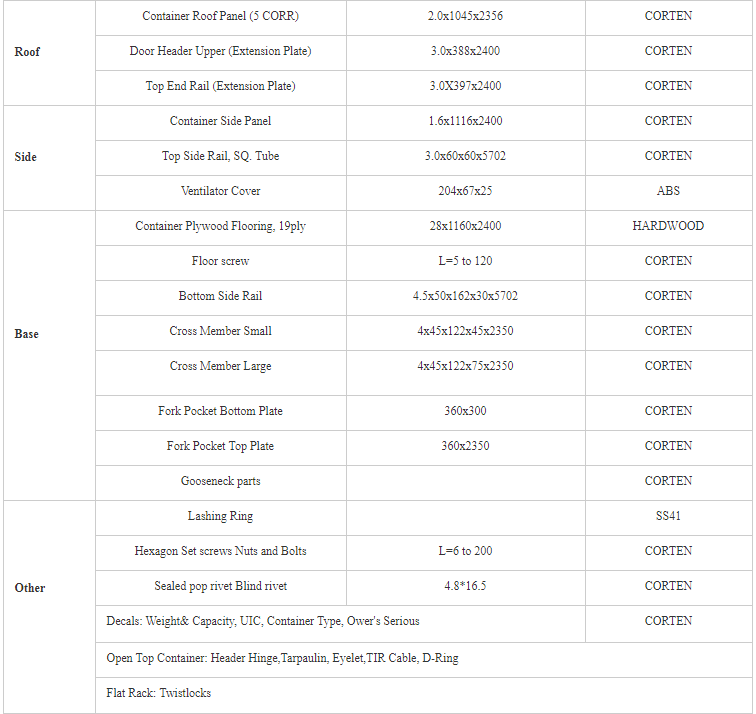

Spec. Container spare parts
Structure corten
Door seals EPDM
Door lock HDG, steel
Floor Container plywood flooring

Package 50pcs packed in standard exported pallet.
Shipping: FCL / LCL deliver to the most port worldwide.

Container Vent
Material：High Grade ABS
Color：Choose
Package：200 pcs per carton
Dimensions：205 x 66.2 x 26 mm
Application：Shipping Container
