twistlock

ihISO Shipping Casting Protector Container Corner Fitting
Material: Carbon Steel
Process: Casting
Heat Treatment: Quenched and Tempered)
Finish: Self Color
Certification: Test certificates can be supplied upon request
Customized requirements are welcome!

PROCESS

CASTING

Origin: China
FOB port: Guangzhou/Shenzhen
Lead time: 10~30 days
Standard: CE, ISO
Main export market: US, European countries, Australia,  Middle East,Canada

We are a professional factory to make rigging hardware and other forggings, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.

Main products  also comprise Chains, Hooks, Shackles, Turnbuckles, Wire rope clips, Load binders and other rigging hardware accessories.

Advantage:
1 Rich experience for international business,
2 prompt delivery, quality control,
3 small orders are acceptable,
4 strong ability for R&D.

Marine Hardware Right Locked Container Twist lock
Product Description
Container Twist Lock Right Locked
Features
Material : Heat Treatable Steel
Finish : Hot Dip Galvanised
Minimum breaking load tension 500 KN / shear 420 KN
Weight 4.5Kgs

Customized requirements are welcome!

Shipping

Origin: China
FOB port : Lianyungang
Lead time: 15~45 days
Standard: CE, ISO
Export market: Worldwide

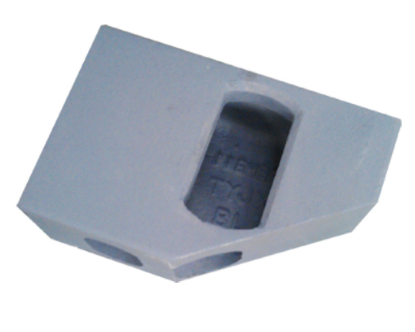

Euro Corner Fitting 45ft Container Corner Castings
Specifications_Europe Container Corner Casting
Type and Standard:For 2550mm wide 45ft container using Europe Type
Material:Casting Steel, SCW49 material
Weight:16.00/pcs
Size:180x247x118mm and 200x218x120mm
Surface Treatment:Raw or Shop Primer
Approval:
With BV or ABS certified factory certificate
With BV or ABS batch certification
With Testing Report for size and material
Design Temperature:-20 ℃ or-40 ℃
Package: 100 pcs are packed into one pallet, 250 sets into one 20ft container

ISO Large Seat Manual Lashing Twist lock Shipping Container Twist Lock
Manual Lashing Twistlock Large Seat Intermediate Shipping Container Twist Lock

ISO or Large Seat Manual Lashing Twist lock Shipping Container Twist Lock

Container lashing twist lock allows two corner castings to be connected together vertically to fix safely container, when container is been transporting in sea or on land.
We supply various kinds of container twist locks like semi-automatic twist lock, fully automatic twist lock, dovetail twist lock and manual twist locks.

	Standard Manual Twist Lock	Large Seat Manual Twist Lock
Weight	4.50 kgs	5.90 kgs
Finish	Hot Dip Galvanized
Material	Casting Steel
M. B.L Shear	420 KN	420 KN
M.B.L Tension	500 KN	500 KN
Certificate	GL	GL

Large Seat Manual Type Shipping Container Twist Lock
Twist lock are designed and manufactured for trailer container chassis for carrying container as per ISO standards.
We can supply kinds of twist lock such as screw twist lock, dovetail twist lock with different sizes.
Casting and forged are available.

And OEM service is Ok, including JOST type, YORK type, BPW type etc.

Material：Steel
Size：150x150, 210X210, 150X210, 500x180, 210x180, or as your drawing and requirement
Type：Manual, Semi-automatic, single type, double type, left locked and right locked
Process：Casting and Forging
Color：Black, Red or as your Requirements
Application ：truck, trailer container chassis

Standard Large Seat Manual Twist Lock
Materials: Casting steel
Surface Treatment: Hot dip galvanized
Certificate: GL
Application: Container lashing twist lock allows two corner castings to be connected together vertically to fix safely container, when container is been transporting in sea or on land.

Type	Standard Manual  Twist Lock	Large Seat Manual  Twist Lock
Weight	4.50 kgs	5.90 kgs
Finish	Hot Dip Galvanized
Material	Casting Steel
M. B.L Shear	420 KN	420 KN
M.B.L Tension	500 KN	500 KN
Certificate	GL	GL

Shipping Container Twist Lock is a standardized rotating connector for securing shipping container. The trailer container twist lock main function is for locking a container into place on container ship, semi-trailer truck or or railway container train; and for lifting of the containers by container cranes and side lifters. A major advantage of sea container twist locks is that containers may be stored or transported without being inspected for months at a time, the twist lock do not require any maintenance in order to function effectively. Even with long term exposure to the different weather, the container remains as simple to move as ever.

We can supply different kinds of container chassis twist lock such as bolt-on twist lock, dovetail twist lock, and weldable twist lock with different sizes. Casting and forging materials are available.We also can customized the sea container twist locks for you, including JOST type, YORK type, BPW type etc.

Bolted on Bottom Twistlock Boltable Container Lashing Dovetail Twist Lock

Materials	High Quality Casting Steel
Surface Treatment	Hot Dip Galvanized
Weight	15 KGS per pcs
Tension	500KN
Shear	250KN
Compression	2000KN
Dimensions	220x220x162 mm
Type	45 degree or 55 degree

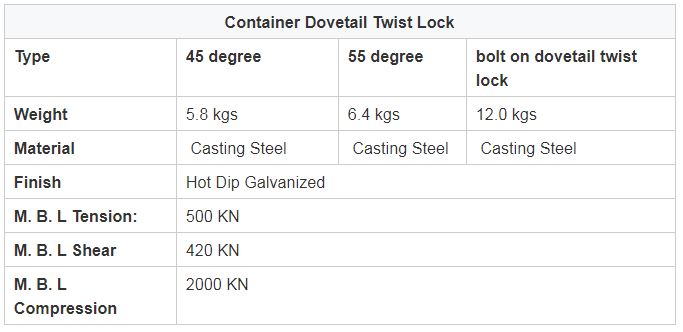

45 Degree 55 Degree Dovetail Bottom Shipping Container Twist Lock

Dovetail twistlocks are used at the bottom corners of containers, either to handle longitudinal forces due to torsional deformation of the ship’s hull, or when the twistlocks need to be easily removed to create a flat stowage surface.

These twistlocks are attached into a dovetail frame, which makes them easy to attach and detach, leaving only the frame fixed.

A dovetail frame does not build as much height as a conventional twistlock foundation would, and therefore it is popular for areas where there is a need to keep the loading deck surface free from protruding fittings, e.g. in case of multi-purpose cargoes.

** Features and benifits:
- easy to use
- low profile twist lock foundation
- hot dipped galvanized
- 2 lock ways: left to right locking  or  right to left locking

** Minimum breaking Loads:
Tension: 500KN
Shear: 420KN

** Twist lock weight:
6.5 kg

Bolted on Bottom Twist lock Boltable Container Lashing Dovetail Twistlock

Product Name	Container twist lock for shipping containers
Twist lock pin material	Q235
Twist lock box material	Q235
Package quantity	One wooden box can put 150pcs or 200pcs
Color	Black or Red or others
Type	Screw twist lock
Option	Other kinds of twist lock can make according to customer's requirements
Manufacture	Confirm with sample or drawing

Customized requirements are welcome!

Shipping container interlocks or stackers are used to fix and lock containers together in a stack and stop them falling off the container vessels when they are at sea. These heavy duty interlocks are the same type used at many ports and on container boats around the world.

For domestic use, if you want to stack a container and ensure it can’t get blown or pushed off its supporting unit then these work extremely well. Much like the shipping containers themselves these interlocks are probably over-engineered for domestic storage use, but they are manufactured on such a scale and are so fantastically strong that they offer a very cost effective option. They are the best quality locking mechanism we know of.

These interlocks are designed for use with any ISO standard width shipping container. You may also want to check the containers that you are stacking have 4 sets of corner castings. Our refurbished range of shipping containers, for example, commonly won’t come out with 4 sets of corner castings.

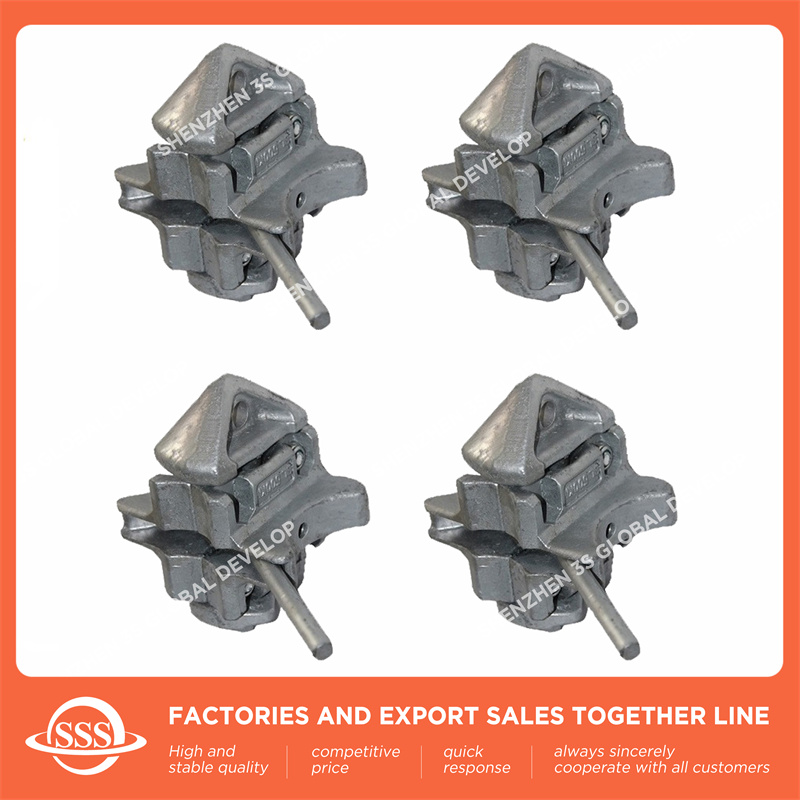

Forged intermediate Manual Container Twistlock for Container Lashing
Product Application
The BD-A2 Manual Twistlocks are easy to operate with a manual locking handle and are widely used between containers on deck.
SPECIFICATION
1) Min.breaking load tension 500KN / Shear 420KN
2) Approval from any classification society
3) Left hand locking as standard, right hand locking on request
4) Internal locking mechanism made of stainless steel components

INTERMEDIATE TWISTLOCK
1)This intermediate twist lock is designed for multiple stacking of containers or swap bodies.
Designed as a container-to-deck and container-to-container locking device.
2)Easy to operate with a manual locking handle.Cast body and forged steel heads gives rugged strength and durability.Handle position acts as visual indicator as to locked/unlocked position.
3)Weight: 5KGS
4) Certificate:GL,BV,CCS,ABS,RINA,LR,NK,DNV etc.

Wide boy twistlock (heavy duty bottom twistlocks)
Large seat twistlocks
1)This intermediate twist lock is designed for multiple stacking of containers or swap bodies.
Designed as a container-to-deck and container-to-container locking device.
2)Easy to operate with a manual locking handle.Cast body and forged steel heads gives rugged strength and durability.Handle position acts as visual indicator as to locked/unlocked position.
3)Weight: 6KGS
4) Certificate:GL,BV,CCS,ABS,RINA,LR,NK,DNV etc.

All sizes auto twistlock /container twist lock for trailer

Twist lock are designed and manufactured for trailer container chassis for carrying container as per ISO standards.
We can supply kinds of twist lock such as screw twist lock, dovetail twist lock with different sizes.
Casting and forged are available.
And OEM service is Ok, including JOST type, YORK type, BPW type etc.
Specification of our some hot sale models

Name	Size of Package Pallet	Qty/Pallet	G.W(KGS)
fixed lock	1100*1100*800mm	300sets/Pallet	1600
Lift spin lock	1100*1100*1000mm	200sets/Pallet	1700
Lift spin lock	1100*1100*800mm	250pcs/Pallet	1280
Lift spin lock	1100*1100*1000mm	200sets/Pallet	1700
German rotary lock	1150*1150*1100mm	150sets/Pallet	2350
German rotary lock	1150*1150*1150mm	200sets/Pallet	2200

1. Our twist locks are with perfect design, good quality, very easy to operate,
2. We mainly with 5000pcs each kind in warehouses.
3. Application: truck, trailer container chassis, for example container twist lock, side locking twist lock, trailer twist lock
4. Category: screw twist lock, dovetail twist lock, etc.
5. Material: Casting Steel/Forging Steel, or stainless steel
6. Size: 150x150, 210X210, 150X210, 500x180, 210x180, or as your drawing and requirement
7. Kind: Manual, Semi-automatic, single type, double type, left locked and right locked
8. Type: Jost, York, BPW type etc.
9. Process: Casting, and Forging
10. Color: black, red, or as required.

Container Turnbuckle Hook to Jaw
Container Turnbuckle - Hook to Jaw - Open Body
Also Available: Hook to Hook and Jaw to Jaw
1. Tension B.L.(KN):500KN
2. SWL (KN): 250KN
3. Shear B.L. (KN): 420KN
4. Weight: 13.5kgs
5. Materials: high tensile steel-drop forged
6. Finish: hot dip galvanized
7. Certificate: GL. CCS. ABS, BV, etc

Container Turnbuckle Jaw to Knob Type
Jaw to Knob Type Turnbuckle Open Body
Counter Parts: Knob Type Lashing Bar and D Rings or Lashing Plate
1. Tension B.L.(KN):500KN
2. SWL (KN): 250KN
3. Weight: 12.5kgs
4. Materials: high tensile steel-drop forged
5. Finish: hot dip galvanized
6. Certificate: GL. CCS. ABS, BV, etc

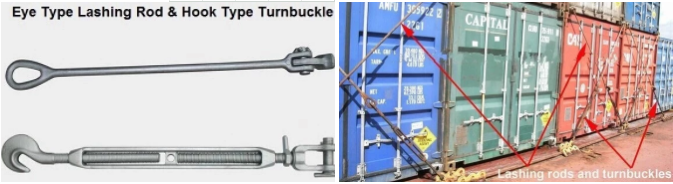

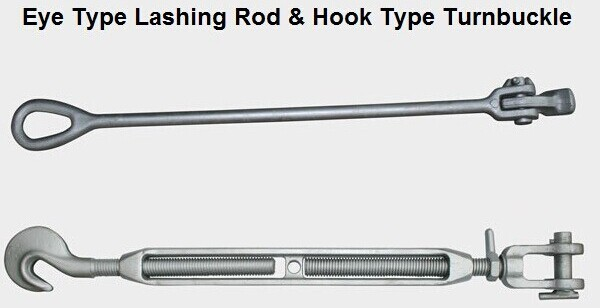

Eye To Swivel Container Lashing Bars (use together with open body turnbuckes and eyes plate or D ring)

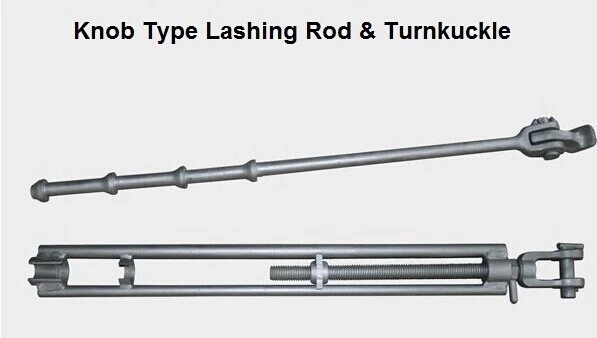

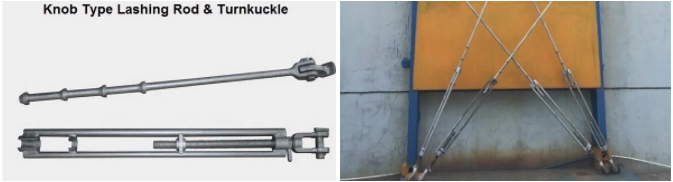

Knob Type Container Lashing Bars (use together with knob type turnbuckes and eyes plate or D ring)
