Container Spare Parts Top Side Rail Square Tube

Container Spare Parts Top Side Rail Square Tube;
Shipping Container Top Side Rail ;
Container Top Side Rail 3.0*60*60*5702mm;
Top Side Rail Standard Flat Steel;
Corten Steel Square Tube Shipping Container Top Side Rail;
Transport Container Accessories Steel Top Side Rail High Quality Manufacturing;
Shipping Container Posts, Rails and Cross Members;
Container top side rail Container plywood All container parts;
Container Lashing Equipment top side rail;
Top side rail container parts;
Top Side Rail/Square Tube 12/14*50*5702mm;
Container Accessories Top Rail High Quality;
Shipping Container Top Side Rail/Square Tube;

Product introduction

Top side rail is structural component running longitudinally along top sides (left and right) of the container between the end frames of the shipping container. This article briefly explains the top side of the shipping container. Top Side Rails are welded to several components of shipping container. They are corner fittings, corner posts, roof panels, door header extension plates, front and rear header extension plates, corner protection plates and side panels. Lashing rings are welded to each bottom and top side rail at corresponding recessed area of side wall. And some high cube containers can be seen on high cube stripes on exterior.

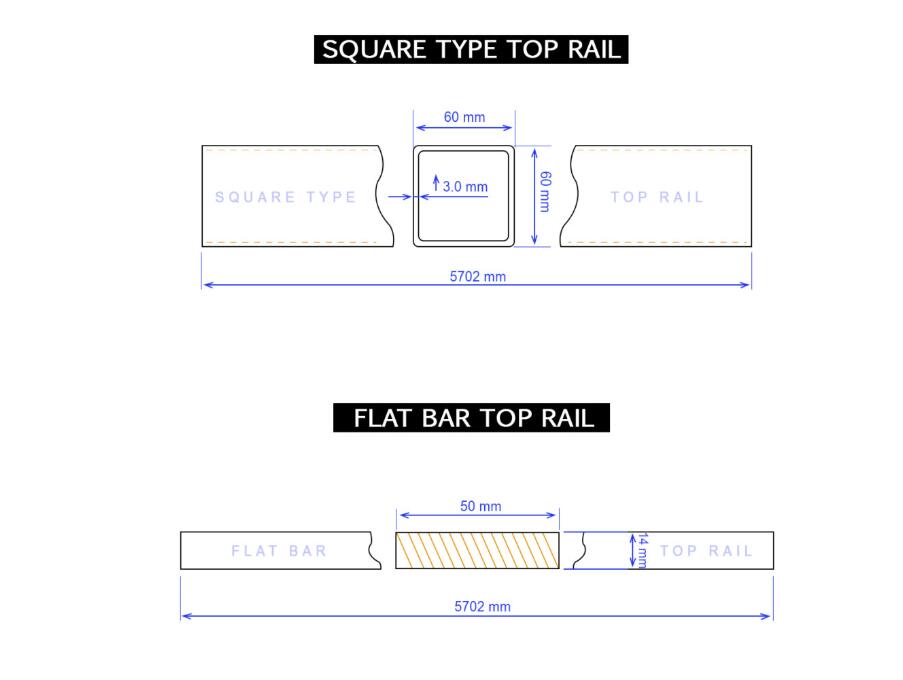

Square Type Top Rail

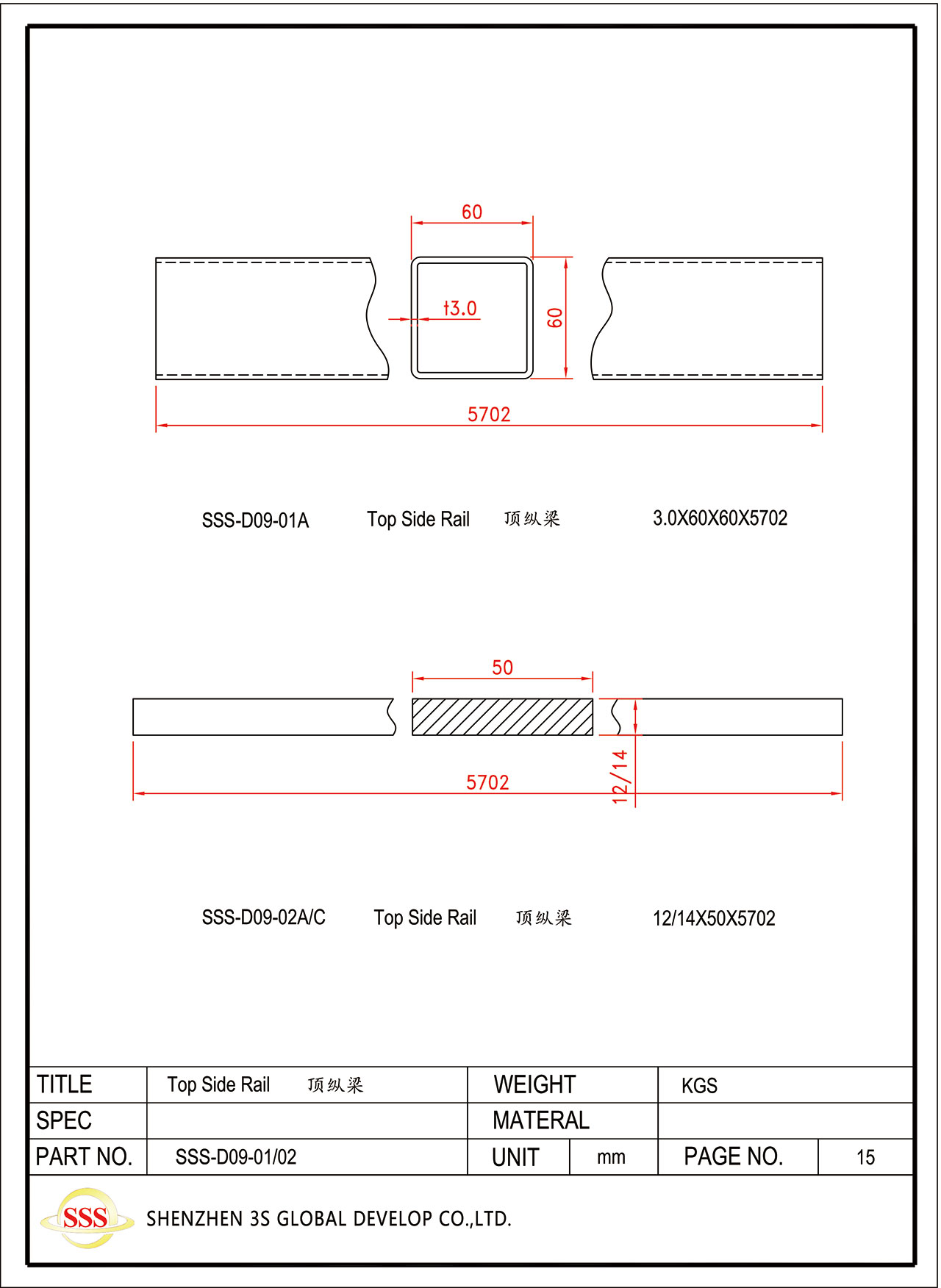

Tube Type Top Rail made of SPA-H Corten-A steel ,
Dimension is height 60mm, width is 60mm, and the thickness of 3mm.

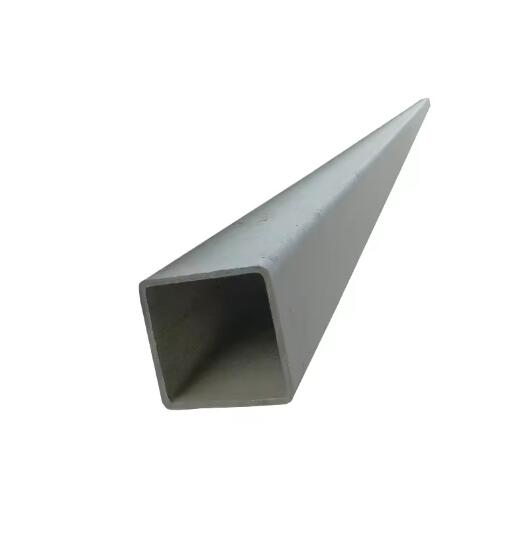

Square Type Top Rail known as tube type top rail, tubular type top rail, box bar top rail.

Top Side Rail 顶纵梁	SSS-D09-01A	3.06060*5702	Square tube
	SSS-D09-02A	12505702	strap iron
	SSS-D09-02C	14505702	strap iron
	SSS-D09-03	T=4.0L=2400＂Ｕ”Ｔype	Maersk
	SSS-D09-04	T=4.0L=2400＂W”Ｔype	Maersk
