Marine Plywood is weather Proof Plywood. A specially formulated phenolic resin of rich solid content confirming to the standards of IS:848:1974 gives immense inner strength to this plywood. The manufacturing of Marine Plywood adheres to the quality standards of IS: 710. It can resist boiling water for more than 72 hours. Very high shear strength and anti-swelling characteristics of Marine Plywood makes it unique in humid, rough and extreme weather conditions.
Marine Plywood is weather Proof Plywood. A specially formulated phenolic resin of rich solid content confirming to the standards of IS:848:1974 gives immense inner strength to this plywood. The manufacturing of Marine Plywood adheres to the quality standards of IS: 710. It can resist boiling water for more than 72 hours. Very high shear strength and anti-swelling characteristics of Marine Plywood makes it unique in humid, rough and extreme weather conditions.
Apitong/Keruing plywood floorboard
Maersk build composite container flooring in China
Bus flooring

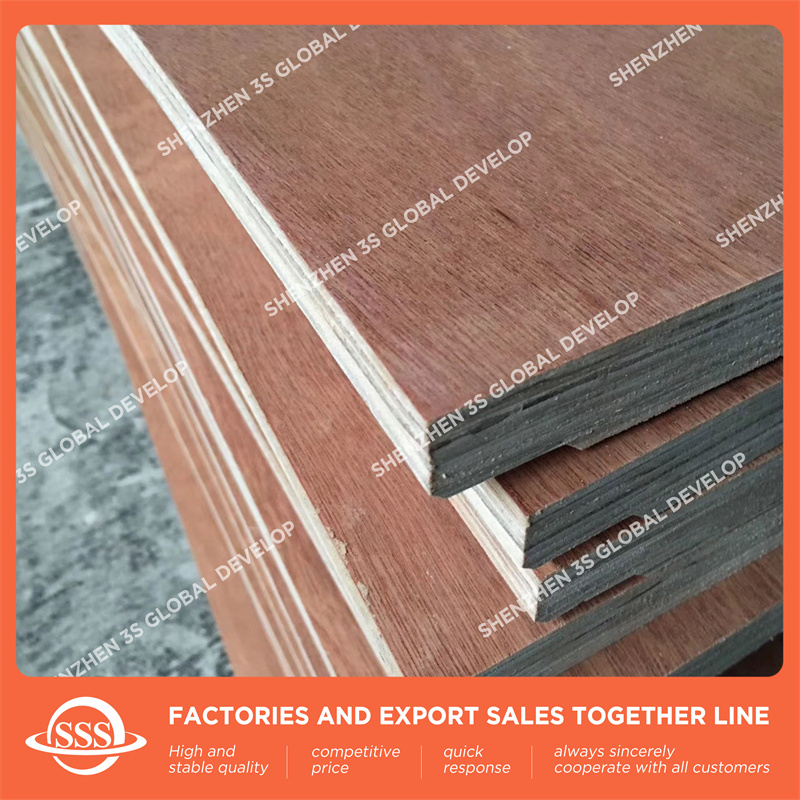

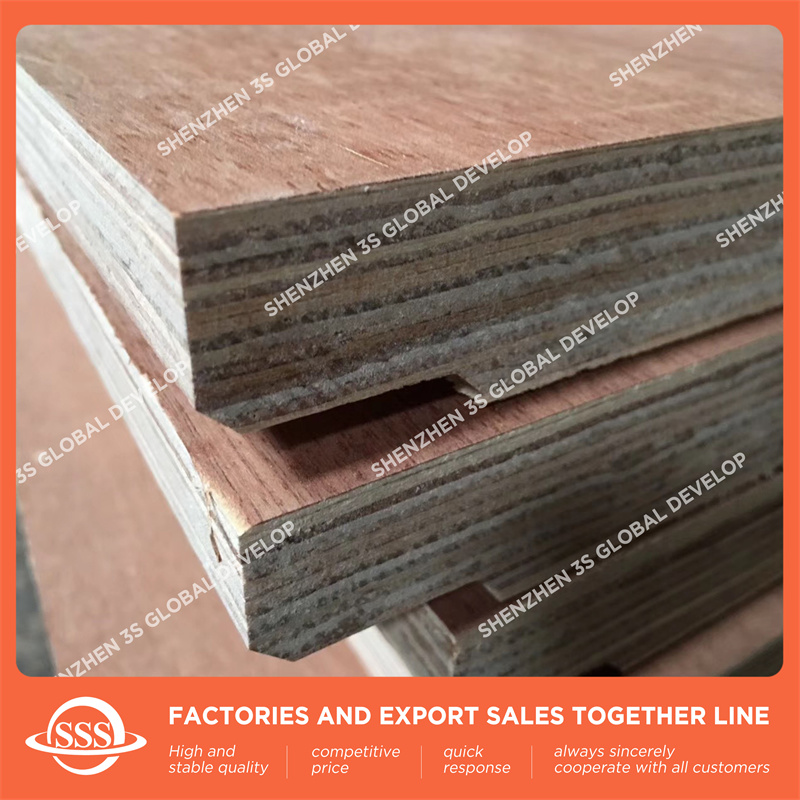

1.Product name: Container Plywood Flooring/New Container Flooring
2.Size:
1220*2440mm or 1160*2400*28mm
1160*1388*28mm,1010*1160*28mm
636*1626*28mm,636*2400*28mm or as request.
3.Glue:WBP Phenolic Resin
4.Core: hardwood throughout, inclu. Keruing(Apitong), Malas, birch etc.
5.Plies:19plies,21plies,23plies
6.Face/Back:keruing/apitong(AA/BB grade)
7.Weight:58-66kg
8.Density:750-800kg/m3
9.Certificate:AQIS
10.Treatment:TAILITEUM-400 Treated
12.Usage:container floor,container reparing
13.Edge Treatment:45 degrees groove/cut(45 degree chamfer angle)
Marine Grade Plywood
Marine Plywood is weather Proof Plywood. A specially formulated phenolic resin of rich solid content confirming to the standards of IS:848:1974 gives immense inner
strength to this plywood. The manufacturing of Marine Plywood adheres to the quality standards of IS: 710. It can resist boiling water for more than 72 hours. Very
high shear strength and anti-swelling characteristics of Marine Plywood makes it unique in humid, rough and extreme weather conditions.
Applications: Marine Plywood is extensively used in the construction, repair and maintenance of marine and river craft, Railways and Bus Coaches. Its strength makes it
an ideal product for Truck Bodies, Container Flooring, Sign Board exposed to sun and rain, bathrooms and other high quality furniture.
Apitong and hardwood core or Chinese New Tech and hardwood core;
Face & Back 0.5-0.8mm;
Glue: WBP (Phenolic);
Moisture lower than 12%;
19 or 21 plies as request;
Density/Weight: 60-65kg/pc;
Quality standard: IICL 6780 N. Even 9000N.
Size by 2440*1220*28mm/2400*1160*28mm or other custom size;
Delivery: 7-10days upon order confirm.
Very professional for the container plywood flooring manufactuering factory from CHINA.
Welcome to visit us.
More information please contact suyee@ssshun.com
Whatsapp:008617722838572
IICL TB 001 - January 02, 2019 (Revision 3) - Introduces the requirement shown on 1.9 F & 3.7 B.
Table 1.9
T 7 - Only floor boards manufactured to pass ISO** floor strength test at 7.2 tons and above
T 6 - Only floor boards manufactured to pass ISO floor strength test at between 6.0 and 7.2 tons
T 5 - Only floor boards manufactured to pass ISO floor strength test at between 5.0 and 6.0 tons
** ISO floor test 1496 - 1 Sixth Edition 2013-07-01 - 6.9 Test No. 8
https://www.linkedin.com/in/yoyo-pan-01342a144/
https://www.facebook.com/profile.php?id=100019555030828
https://twitter.com/suyeeplywood
https://suyee2017.en.made-in-china.com/
Apitong/keruing hardwood flooring
Bamboo flooring
Bamboo&hardwood flooring
Film coating hardwood flooring
Bridge Special Bamboo Plywood
Products Name: Packing plywood, Commercial plywood. Film plywood, Film faced bamboo plywood, bamboo formwork, bamboo board, bamboo panel, Bamboo plywood for bridge
construction/ bridge building plywood
Brown/Black Film Faced Plywood
Size: 2440*1220*(10-20)mm
Glue: Phenolic glue
Materials: Bamboo and Poplar
Moisture: 11.7
Density: 850kg/m3
Water Absorption: ≤10%
Modulus Of Elasticity://≥6.1*103N/mm2 ≥4.5*103N/mm2
Impact Strength: ≥50Kj/m2
Bonding Strength: ≤50mm/layer
Abrasion Value: ≤0.09g/100r
Using times: 5-8times
Preservation Strength: //≥50N/mm2 ⊥≥35N/mm2
Dimensions of 4ft x 8ft laminated panel for shuttering bridge special bamboo plywood:
1220*2240*(6-20), 6-8mm thickness normally used as curved plywood,
other normal use thickness are 12mm, 15mm, 18mm.
Special: Mirror finished special bamboo plywood also called bamboo plywood for bridge construction, mirror surface bamboo plywood, clear water bambo
o plywood. Widely used in highway, bridge, dam, tunnel, power plant and so on which need mirror effect concrete, also applicable to free-painting house building.
Except all the bamboo plywood advantages, the unique mirror effect,
perfectly solved the mark defect of cast-in-situ construction concrete face.
Promote the quality of the concrete appearance process to a new platform!
To provide reliable technology for building owners to create excellent project.
